60084-0141 Brine Injector Drain Assembly Fleck Valve

Description

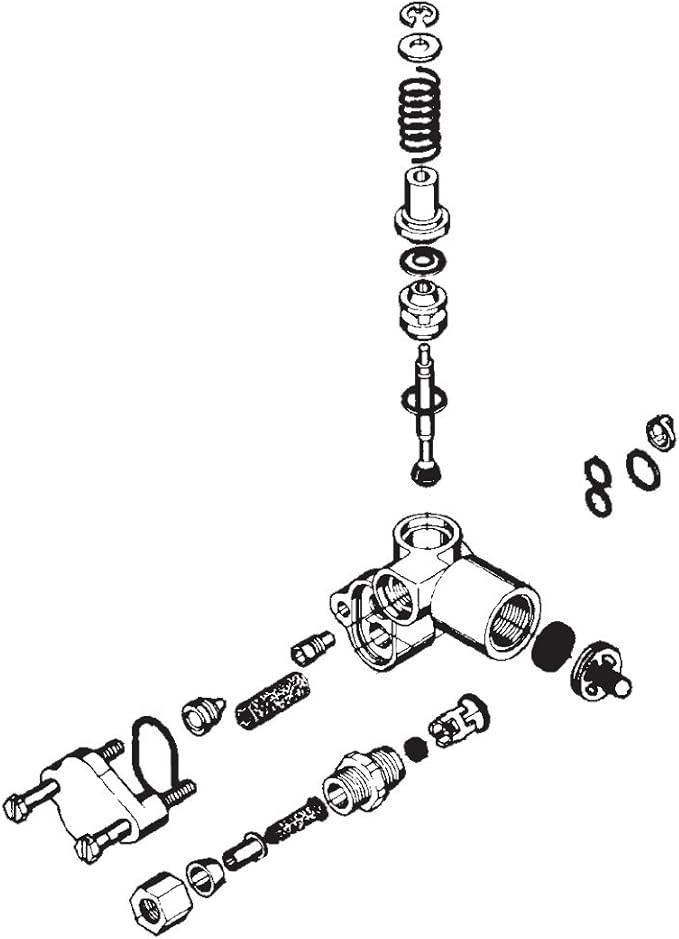

Replacement Brine/Drain Assembly Contains all parts to replace the entire assembly 12638 – O-ring, Drain 13301 – O-ring, Injector 13302 – O-ring, Brine Spacer 13303 – O-ring, Injector Cover 13163 – Injector Body 10913-X – Injector Nozzle 10914-X – Injector Throat 10227 – Injector Screen 13166 – Injector Cover 13172 – Brine Valve Stem 12626 – Brine Valve Seat 13165 – Brine Valve Cap 13167 – Brine Valve Spacer 12550 – Quad Ring 11973 – Spring, Brine Valve 16098 – Washer, Brine Valve 11981-01 – Retaining Ring 10329 – BLFC Fitting Nut 10330 – BLFC Ferrule 10332 – BLFC Tube Insert 1209X – BLFC Button 12977 – O-ring, BLFC 13245 – BLFC Button Retainer 13244 – BLFC Fitting, 3/8 DLFC Button 13173-01 – Retainer, DLFC, Button, w/O-ring 12767 -Screen, Brine Line 13497 – Air Disperser. Genuine Fleck Parts This contains all genuine Fleck parts Replacement assembly for the brine injector and drain components of the Fleck 5600 valve. Over time these parts can wear out and prevent proper system operation. Make sure to specify tank diameter when ordering.

Technical Details

• Manufacturer: ‎Fleck
• Product Dimensions: ‎27.94 x 27.94 x 27.94 cm; 362.87 g
• Item model number: ‎60084-0141
• Is discontinued by manufacturer: ‎No
• Size: ‎11 inches
• Colour: ‎Various
• Material: ‎Plastic
• Item Package Quantity: ‎1
• Number of Pieces: ‎1
• Batteries Included?: ‎No
• Batteries Required?: ‎No
• Item Weight: ‎363 g
