AQUA ONE State of the Art New Invention. (Patent Pending)

UV Function

Unlike most disinfectants, ultraviolet (UV) radiation does not inactivate microorganisms by chemical interaction. UV radiation inactivates organisms by absorption of the light which causes a photochemical reaction that alters molecular components essential to cell function. As UV rays penetrate the cell wall of the microorganism, the energy reacts with nucleic acids and other vital cell components, resulting in injury or death of the exposed cells. There is ample evidence to conclude that if sufficient dosages of UV energy reach the organisms, UV can disinfect water to whatever degree is required.

Based on the available research literature, it appears that although exceptional for disinfection of small microorganisms such as bacteria and viruses, UV doses required to inactivate larger protozoa such as Giardia and Cryptosporidium are several times higher than for bacteria and virus inactivation As a result, UV is often considered in concert with ozone and/or hydrogen peroxide to enhance the disinfection effectiveness of UV or for ground water where Giardia and Cryptosporidium are not expected to occur.

UV Radiation

UV radiation quickly dissipates into the water to be absorbed or reflected off material within the water. As a result, no residual is produced. This process is attractive from a DBP formation standpoint; however, a secondary chemical disinfectant is required to maintain a residual throughout the distribution system, which may be subject to recontamination.

AQUA ONE State of the Art New Invention.

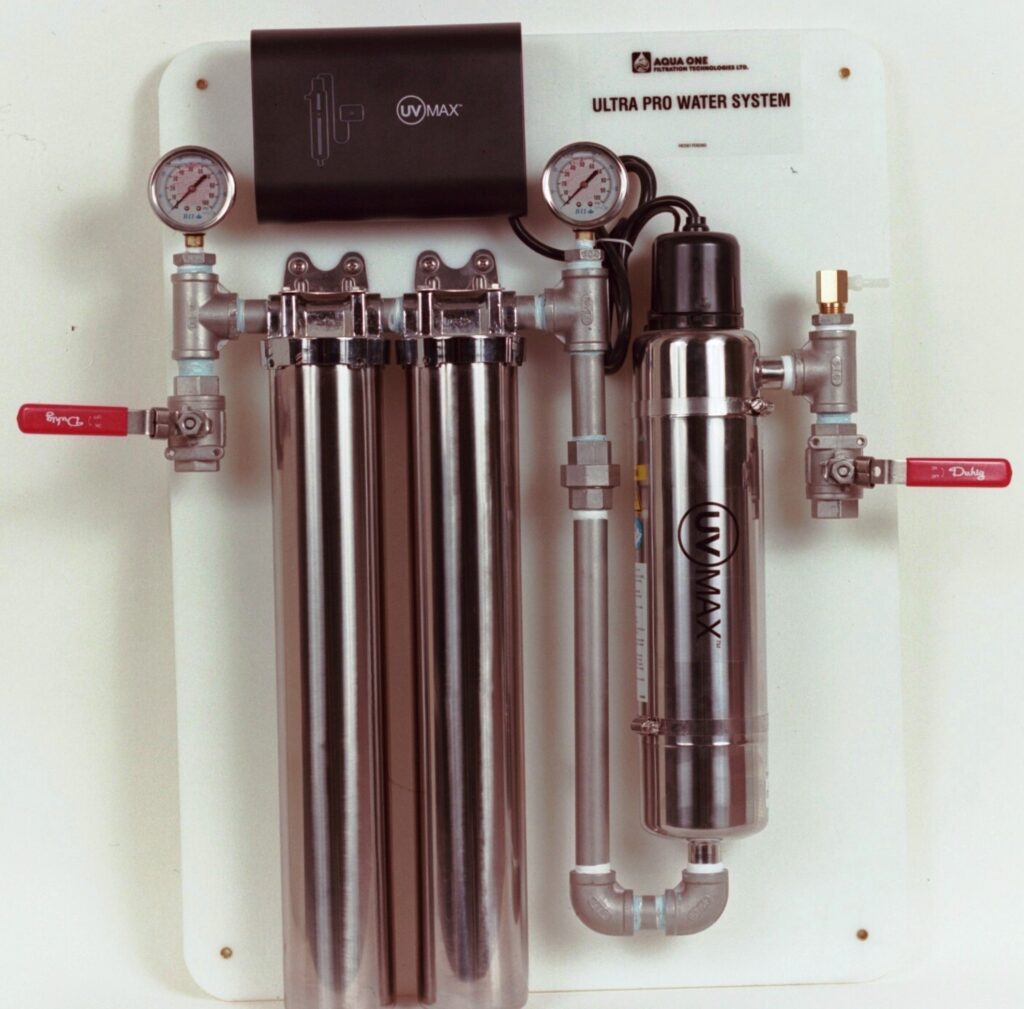

AQUA ONE PRO Stainless Steel Water Filtration System with UV Light Sanitizer

Ultra Violet Light with Stainless Steel Double Water Filtration System (Patent Pending)

Benefits:

  • No chemicals added
  • No disinfection by-products
  • 24/7 bacteria-free water
  • Cost-effective
  • Fast-acting
  • Proven and trusted
  • More effective against a broader range of organisms than chlorine
  • Simple to maintain
  • Very low energy consumption
  • 12,000 hours bulb life
  • One-year bulb life warranty
  • Replacement parts easily available
  • Easy lamp replacement

Features:

  • 316L stainless steel, polished reactors, manufactured to ASME vessel pressure standards
  • 20″ x 2.5″ housing, polished & pressure tested
  • Absolute 1 & 5 microns, 2.5″ x 20″ pleated polypropylene filter cartridges
  • 21.2 to 100 liters per minute models
  • Stainless steel 1000 PSI Corby 3/4″ ball valves
  • Two 2.5″ stainless steel pressure gauges, 0–100 PSI
  • Equipped with CoolTouch valve kit
  • Securely mounted on HDPE 1/2″ thick sheet
  • Stand-alone or wall mount
  • UV Max Model C to E, all versions available
  • Electronics with LED display for remaining lamp life, total running hours, audible & visual lamp failure alarms, remote on, and solenoid ready
  • Constant current electronic ballasts in a splash-proof (IP-54) case
  • User-friendly bayonet style lamp connector (quick ¼ turn removal with no extra tools needed)
  • Reliable, industry-proven low-pressure amalgam (LP-AM) coated UV lamps, 12,000-hour lamp life
  • 10-year limited warranty on UV reactors
  • Down Load Brochure
  • Down Load Owner's Manual

UV MAX Model A

Features:

  • 5.5 liter per minute
  • Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli and viruses not visible to the naked eye.
  • Lamps and sleeves are assembled together for ease of handling. They can be replaced separately, in minutes and without tools.
  • Equipped with a safety cap.
UV Lamp Part #602803
Quartz Sleeve Part #602730
UV LAMP/SLEEVE COMBOMODEL A
Power Supply Kit 120VModel A
  • Brochure pdf
  • |
  • Owner’s Manual pdf

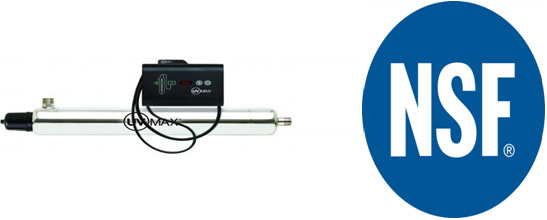

UV MAX Model C4

Features:

  • 21.2 liters per minute
  • Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E. coli, and viruses not visible to the naked eye.
  • The special lamp plug ensures that no one can power the UV lamp if it’s not in the UV chamber.
  • Lamps and sleeves are assembled together for ease of handling. They can be replaced separately, in minutes and without tools.
  • The reference card outlines the most important system functions and maintenance for quick, on-the-spot questions.
  • Indicator lights show the status of system components. Warning lights appear when system maintenance is required.
UV Lamp Part #602805
Quartz Sleeve Part #602730
  • Brochure
  • |
  • Owner’s Manual

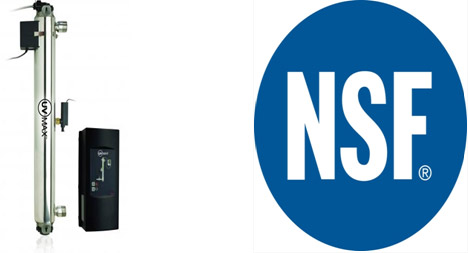

UVMAX Model E4 Plus

Features:

  • 58.9 litre per minute
  • Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E. coli, and viruses not visible to the naked eye.
  • The special lamp plug ensures that no one can power the UV lamp if it’s not in the UV chamber.
  • With the push of a button, you can confirm the proper operation of the sensor.
  • Lamps and sleeves are assembled together for ease of handling. They can be replaced separately, in minutes and without tools.
  • The reference card outlines the most important system functions and maintenance for quick, on-the-spot questions.
  • Indicator lights show the status of system components. Warning lights appear when system maintenance is required.
  • The lamp timer display starts at 365 and counts down the days to annual lamp replacement.
  • Once annual lamp replacement is completed, press this button to restart the lamp timer.
  • If a warning alarm sounds, simply press this button to silence the alarm.
  • Our high output validated UV lamp is engineered to treat variable water conditions.
Lamp Part #602806
Sleeve Part #602733
  • Brochure
  • |
  • Owner’s Manual

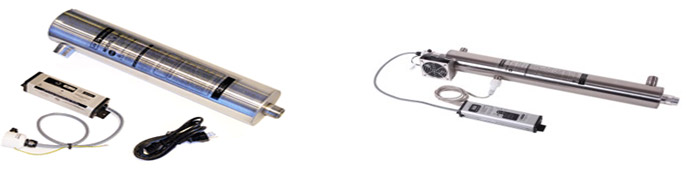

Features:

  • 170 liters per minute
  • Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E. coli, and viruses not visible to the naked eye.
  • The UVMAX systems use a revolutionary lamp with twice the output of current high-output lamps, providing compact single-lamp systems half the size of their predecessors.
  • Our revolutionary amalgam lamps last up to two years, reducing maintenance requirements.
  • The CoolTouch significantly reduces water temperature and does not waste any water.
  • Easy quarter-twist assembly: A quarter-twist to the positive stop and you’re done. No tools and no risk of over-tightening.
  • The power supply has an intuitive interface, showing the system’s performance.
  • All connections are color-coded — simply plug and play!
  • With the push of a button, you can confirm the proper operation of the sensor.
  • The solenoid stops water flow if water treatment is compromised.
Lamp Part #602856
Sleeve Part #602976
  • Brochure
  • |
  • Owner’s Manual
SENSORCOOL TOUCH VALVE KIT (1")
Sensor for D4 Plus, E4 Plus, F4 Plus series.CoolTouch 1 inch valve kit for UVMAX E4, E, F4, F and Plus series.
Part # 650538
REMOTE CORDBRASS SOLENOID KITS (1”)
REMOTE OPTIONS CORDS FOR UVMAX D4, E4, F4 AND PLUS SERIES. PART # 60307124V SOLENOID/REMOTE ALARM JUNCTION BOX, AVAILABLE AS 120V INPUT ONLY FOR D4/PLUS, E4/PLUS AND F4/PLUS SERIES. (24V SOLENOID VALVE NOT INCLUDED) PART # 650717-002
SOLENOID/REMOTE ALARM JUNCTION BOX
24V SOLENOID/REMOTE ALARM JUNCTION BOX, AVAILABLE AS 120V INPUT ONLY FOR D4/PLUS, E4/PLUS AND F4/PLUS SERIES (24V SOLENOID VALVE NOT INCLUDED).
PART #: 650705

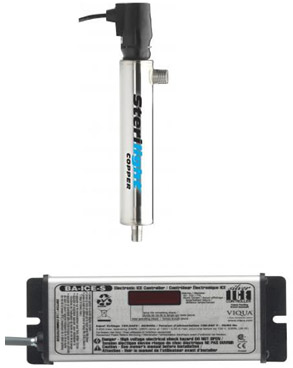

Ultraviolet Light for Residential Reverse Osmosis Water Systems & Aquariums (MODEL SC1)

Features:
  • 7.5 liters per minute
  • Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E. coli, and viruses not visible to the naked eye.
  • Specially designed and tested Sterilume™-EX lamps provide consistent and reliable ultraviolet output over the entire life of the lamp (9,000 hours) to ensure continuous purification.
  • The system is easy to maintain and service.
  • The ultraviolet lamp can be changed without interrupting the water flow.
  • Built with a durable stainless steel chamber to prolong life and eliminate ultraviolet light degradation.
  • The power supply is integrated into the lamp connector and has an LED power/lamp-on indicator.
UV Lamp Part #QS 212D
Quartz Sleeve Parts #410867
O-Ring Patr # 410867
MODEL A
  • Brochure pdf
  • |
  • Owner’s Manual pdf
  • |
  • Warranty & Registration Card pdf

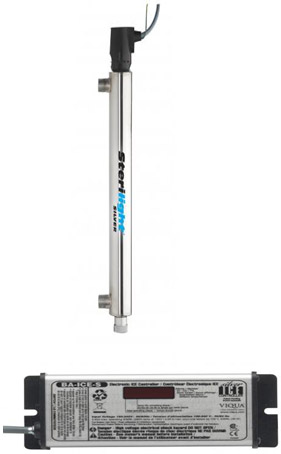

Sterilight Residential Ultraviolet Lights Model S12Q-PA

Features:
  • 12 Liter Per Minute
  • Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli and viruses not visible to the naked eye.
  • Specially designed and tested Sterilume™-EX lamps provide consistent and reliable ultraviolet output over the entire life of the lamp (9000 hours) to ensure continuous purification.
  • The system is easy to maintain and service.
  • The ultraviolet lamp can be changed without interrupting the water flow.
  • Built with a durable stainless steel chamber to prolong life and eliminate ultraviolet light degradation.
  • The Silver™ ICE power supply visually displays the remaining lamp life and will go into alarm if the lamp fails to notify the homeowner.
  • The power supply has a sealed case to prevent damage from accidental water intrusion and is fully CSA and CE compliant.
UV Lamp Part #QS 212D
Quartz Sleeve Parts # 410867
O-Ring Patr # 410867MODEL A
Electronic ICE controller BA-ICE-S (100-240V./50-60Hz.)
UV monitor assembly for Silver “Plus” series 254NM-S1 (all except S12Q-PA)
O- Ring Part#OR 212
  • Brochure pdf
  • |
  • Owner’s Manual pdf
  • |
  • Warranty & Registration Card pdf

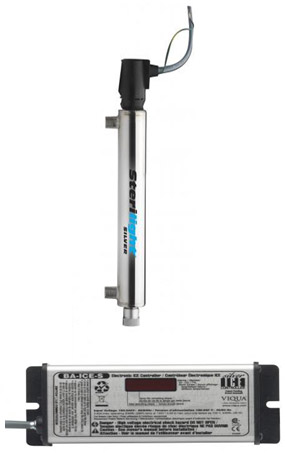

MODEL S5Q-PA

Features:
  • 41.6 liters per minute
  • Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E. coli, and viruses not visible to the naked eye.
  • Specially designed and tested Sterilume™-EX lamps provide consistent and reliable ultraviolet output over the entire life of the lamp (9,000 hours) to ensure continuous purification.
  • The system is easy to maintain and service.
  • The ultraviolet lamp can be changed without interrupting the water flow.
  • Built with a durable stainless steel chamber to prolong life and eliminate ultraviolet light degradation.
  • The Silver™ ICE power supply visually displays the remaining lamp life and will go into alarm if the lamp fails to notify the homeowner.
  • The power supply has a sealed case to prevent damage from accidental water intrusion and is fully CSA and CE compliant.
UV Lamp Part #S 463RL
Quartz Sleeve Parts # QS-463
BA-ICE-S Electronic ICE controller (100-240V./50-60Hz.)
UV monitor assembly for Silver “Plus” series 254NM-S1 (all except S12Q-PA)
O-Ring Part #OR 212
  • Brochure pdf
  • |
  • Owner’s Manual pdf
  • |
  • Warranty & Registration Card pdf
MODEL SVP 200 PLATINUM
