Pentek 150469 3/4-Inch 10-Inch Big Blue Filter Housing

Description

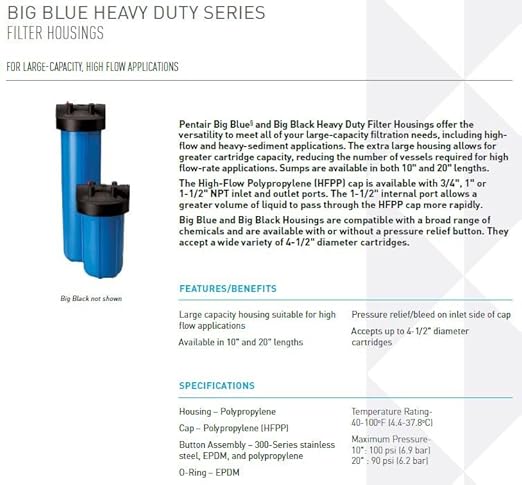

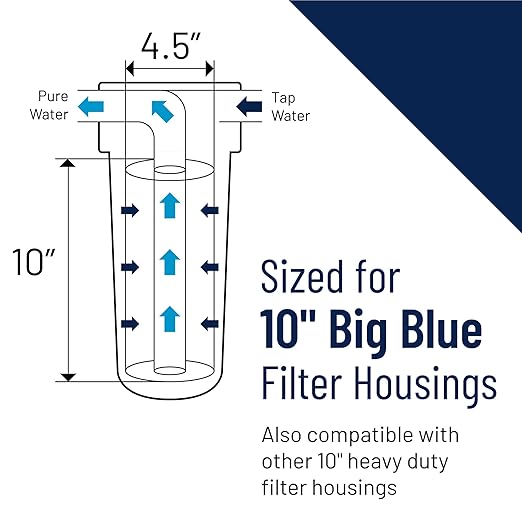

This Pentek 150469 3/4” #10 Big Blue filter housing with pressure relief is suitable for high-flow and heavy sediment applications. The opaque blue sump is made of reinforced polypropylene for strength and resistance to chemicals, and the black cap is made of high-flow polypropylene (HFPP) for stiffness. The black cap has 3/4” female National Pipe Thread Taper (NPT) threaded input and output connections and a nitrile butadiene rubber (Buna-N) O-ring to ensure a watertight seal. A pressure relief button on the inlet side of the cap releases pressure in the housing for changing filter cartridges. The housing can be used with a 10” x 4-1/2” filter cartridge (sold separately). It has an initial pressure drop of 2 pounds per square inch (psi) at a flow rate of 15 gallons per minute (gpm), a maximum operating pressure of 100 psi, and a maximum operating temperature of 100 degrees F (37.8 degrees C). This filter housing meets National Sanitation Foundation/American National Standards Institute (NSF/ANSI) standard 42 for quality assurance, and is for use in various high-flow applications, including residential drinking water filtration, food service, and irrigation, among others.

Technical Details

• Manufacturer: ‎Pentek
• Place of Business: ‎Coraopolis, PA 15108, USA
• Part number: ‎150469
• Item Weight: ‎2.04 kg
• Product Dimensions: ‎31.75 x 18.52 x 18.52 cm; 2.04 kg
• Item model number: ‎3/4” #10 BB Black/Blue HFPP w/PR
• Is discontinued by manufacturer: ‎No
• Size: ‎1 Count (Pack of 1)
• Colour: ‎Blue
• Material: ‎Polypropylene
• Power source type: ‎Manual Operation
• Installation Method: ‎Under Sink
• Item Package Quantity: ‎1
• Number of Pieces: ‎1
• Flow Rate: ‎15 Gallons Per Minute
• Specifications: ‎ANSI, ANSI 42, ISO, ISO 9001, NSF, certified frustration-free
• Special Features: ‎High flow
• Included components: ‎Main Housing
• Batteries Included?: ‎No
• Batteries Required?: ‎No
• Length: ‎12.5 inches
• Width: ‎7.29 inches
• Height: ‎7.29 inches
