Description
Product Documentation
Official Autotrol documentation is provided to support installation, configuration, and maintenance of the 268 Series Performa control valve with the 760 Logix metered control.
- Autotrol 268 Performa Valve Data Sheet
- Autotrol 760 Logix Meter Control Data Sheet
- Autotrol 268/760 Manual (Parts list pages 31–36)
FEATURES AND BENEFITS (Autotrol 268 Series Control Valve)
The Autotrol 268 Series control valve is engineered for high-capacity water treatment applications requiring durability, efficiency, and precise system control.
- Time-tested Duraflow flapper provides frictionless sealing for extended service life.
- Fiber-reinforced polymer valve body delivers superior strength while remaining non-corrosive and UV resistant.
- Optical sensor ensures precise cycle positioning.
- Double backwash design helps reduce hardness leakage.
- Fully adjustable 5- or 8-cycle control supports efficient and reliable system operation.
- Continuous service flow rate of 25 GPM with a 20 GPM backwash rate.
- Backwash capability accommodates softener tanks up to 16 inches and filter tanks up to 18 inches in diameter.
- Super capacitor maintains time of day during power outages.
- Environmental protective cover provides water resistance, corrosion resistance, and UV stability.
- Soft water refill feature promotes a cleaner brine tank.
- Programming is stored in memory and retained during power interruptions.
- History data tracking supports valve performance monitoring.
OPTIONS
Optional configurations and accessories allow the Autotrol 268/760 system to be customized for a wide range of installation and performance requirements.
- Filter or softener control valve configurations.
- Fiber-reinforced polymer bypass valve.
- Plumbing connections available in 3/4″–1-1/4″ NPT, BSP, and sweat fittings.
- Internal Autotrol turbine.
- Variable reserve for increased system efficiency.
- Auxiliary switch kits.
- Timer wall mount kits.
VALVE SPECIFICATION
Technical specifications outlining operating conditions, electrical requirements, and configuration details of the Autotrol 268/760 Logix Performa metered softener control valve.
- Part Number: 1242429

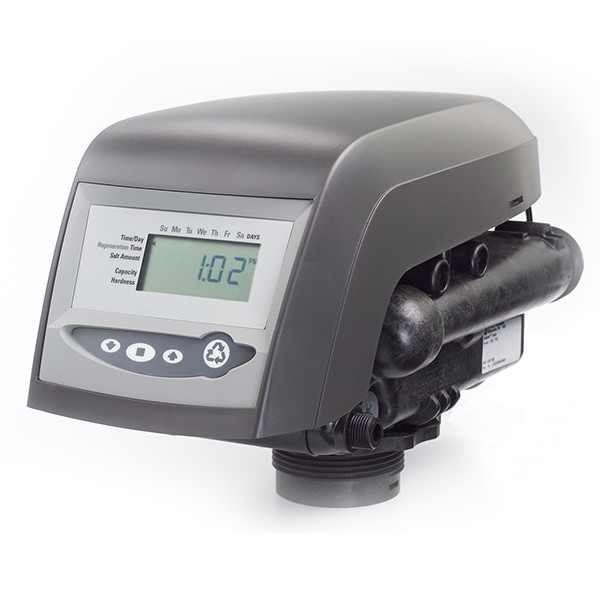

- Model Number: 268/760 (Autotrol Logix Performa Metered Softener Control Valve)
- Operating Pressure: 20–100 psi (1.38–6.89 bar)
- Water Temperature: 35–100°F (2–38°C)
- Transformer Output Voltage: 12V AC, 400 mA
- Tank Thread: 2-1/2″
- Notes: Bypass valve, 3/4″–1″ NPT fittings, drain line flow controller (DLFC), and cover are sold separately.
