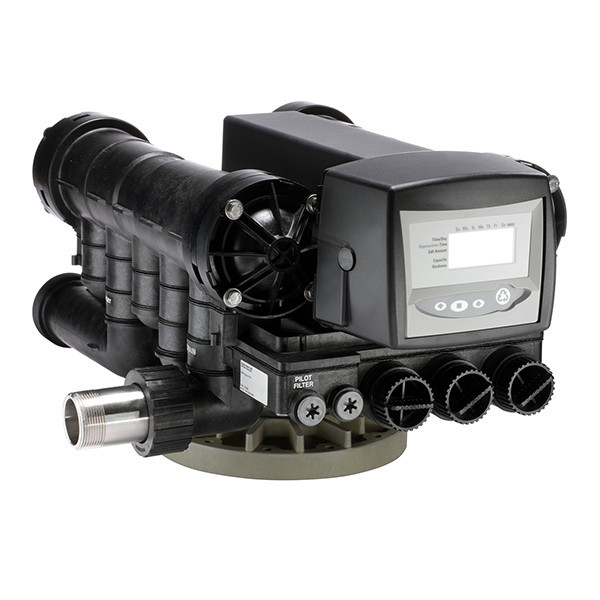

293/742F-UWB Autotrol 293 Magnum IT 4 Cycle Filter Valve (4001317)

Description

Product Documentation

Official Autotrol documentation is provided to support proper installation, setup, and maintenance of the Magnum control valve with 742 Logix time clock control.

• Autotrol Magnum Control Valve Data Sheet
• Autotrol 742 Logix Time Clock Control Data Sheet
• Autotrol Magnum Control Valve Manual

FEATURES AND BENEFITS

The Autotrol Magnum valve combined with the Logix control platform is engineered for high-capacity filtration applications requiring durability, precise control, and dependable performance.

• The Logix series delivers advanced control functionality for the Magnum valve.
• Cartridge-style assembly allows easy installation and cleaning of injectors, refill components, and brine screen features.
• Magnum CV valve features 1-1/2″ inlet and outlet connections.
• Magnum IT valve features 2″ inlet and outlet connections.
• Time-tested Duraflow flapper provides frictionless sealing for extended service life.
• Fiber-reinforced polymer valve body delivers superior strength while remaining non-corrosive and UV resistant.
• Optical sensor ensures precise cycle positioning.
• Fully adjustable 3- or 5-cycle control supports efficient and reliable system operation.
• Continuous service flow rate of 76 GPM with a backwash rate of 89 GPM.
• Backwash capability accommodates softener and filter tanks up to 36 inches in diameter.
• Designed for use in single or multiple tank systems.
• Super capacitor maintains time of day during power outages.
• Programming is stored in memory and retained during power interruptions.
• History data tracking supports valve performance monitoring.

SPECIFICATION

Technical specifications outlining operating limits, connection sizes, and configuration details of the Autotrol Magnum IT filter valve with 742 Logix time clock control.

• Part Number: 4001317 (Autotrol 293 Magnum IT Filter Valve, 4-Cycle, 293/742F-UWB)
• Model Number: 293/742F Logix Time Clock Filter Valve
• Tank Thread: 4″
• Inlet / Outlet Threads: 2″ NPT or BSPT, female, CPVC
• Brine Line Connection: 3/4″ NPT
• Drain Line Connection: 1-1/2″ NPT or BSPT, female, CPVC
• Riser Tube Diameter: 1-1/2″
• Working Pressure: 25–100 psi (1.72–6.9 bar)
• Water Temperature: 35–100°F (2–38°C)
• Bypass: Hard water bypass cartridge included
• Notes: 1.5″–2″ NPT/CPVC fittings and drain line flow controller sold separately
