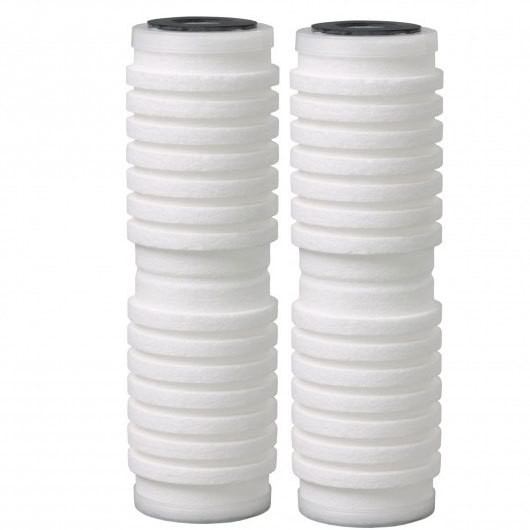

3M AP420 Whole House Drop in 5 Micron Replacement Filter Cartridge (2Pack)

Description

Overview

The 3M Aqua-Pure Whole House Standard Diameter Water Filter Drop-in Replacement Cartridge AP420 is designed for use with AP100 housings as well as standard and large diameter stainless steel housing series. This standard 2.75-inch diameter drop-in cartridge is manufacturer tested and verified to deliver reliable whole-house filtration performance.

The AP420 cartridge provides nominal sediment reduction down to 5 microns while also helping reduce scale formation. Its rigid construction, produced through a proprietary polypropylene manufacturing process, helps prevent sediment unloading caused by changes in water pressure, often referred to as water hammer.

Integrated scale inhibition media helps minimize scale buildup on both standard and tankless water heaters, as well as downstream plumbing fixtures. This dual-function design makes the AP420 an effective choice for maintaining water system efficiency and extending equipment life.

Product Documentation

• 3M Aqua-Pure AP420 Spec Sheet

Features

• Provides nominal filtration down to 5 microns
• Helps reduce sediment and inhibit scale formation
• Rigid polypropylene construction helps prevent sediment unloading due to pressure fluctuations
• Scale inhibition media helps protect water heaters and plumbing components
• Supports flow rates up to 10 gpm (37.9 lpm), dependent on housing configuration
• Average cartridge life of approximately 6 months, depending on incoming water quality

Specifications

• Applications: Whole house water filtration
• Brand: Aqua-Pure™
• End modification: Drop-in style cartridge
• Filter type: Drop-in cartridge
• Micron rating: 5
• Flow rate: 10 gpm (37.9 liters per minute)
• Industries: Home
• Length: 10 inches (25.4 cm)
• Width: 3 inches (7.6 cm)
• Inlet/Outlet size: 1 inch
• Operating pressure range: 25–125 psi (172–862 kPa)
• Maximum operating temperature: 100°F (38.7°C)
• Reduction claims: Sediment, scale
• Recommended replacement interval: 6 months
• Operating temperature range: 40–100°F (4.4–37.8°C)
• Case quantity: 6 pieces
