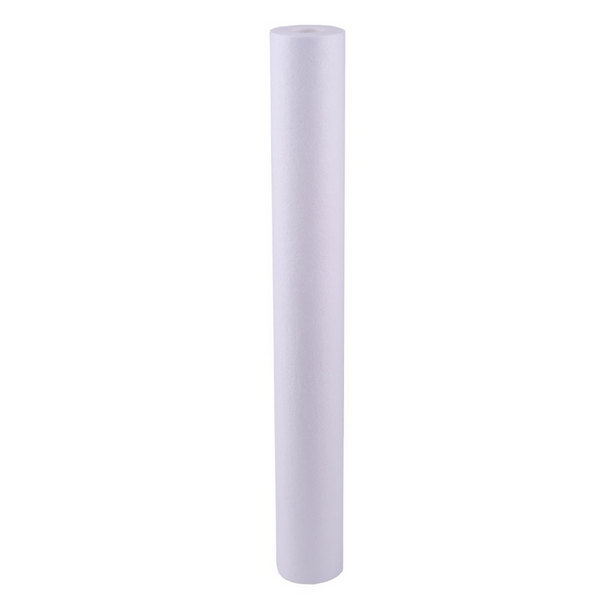

94225 GE Hytrex GX20-29-1/4 Depth Sediment 20 Micron Filter Cartridge 2.5″ x 29-1/4″

Description

Product documentation:

• GE Hytrex Depth Sediment Filter Cartridge Spec Sheet

Product Specification:

• Part Number: 94225
• NSF Certified
• Size: 2.5” x 29-1/4″
• Nominal Micron Rating: 20 micron
• Case Quantity: 20 pieces (price per piece)
• Filter Media: Polypropylene
• End Caps and Adapters Material: Polypropylene
• Nominal Outside Diameter: 2.50 inch (6.4 cm)
• Nominal Inside Diameter: 1 inch (2.5 cm)
• Maximum Differential Pressure: 35 psi (2.4 bar) at ≤100°F (38°C)
• Maximum Operating Temperature: 160°F (71°C) at ≤15 psid (1.0 bar)
• Recommended Maximum Flow Rate: 5 gpm (19 L/min) per 10-inch length

Depth Filter Features:

• Extended lifespan
• Minimal pressure drop
• High dirt holding capacity
• Efficient filtration performance
• Consistent manufacturing quality
• True graded density captures contaminants throughout the full depth of the filter
• Lower density outer layer with progressively higher density toward the core

Typical Applications:

• Potable water filtration for residential and commercial use
• High purity chemical processing
• Bottled water production
• Reverse osmosis pre-treatment
• Oil and gas applications
• Electronics industry use
