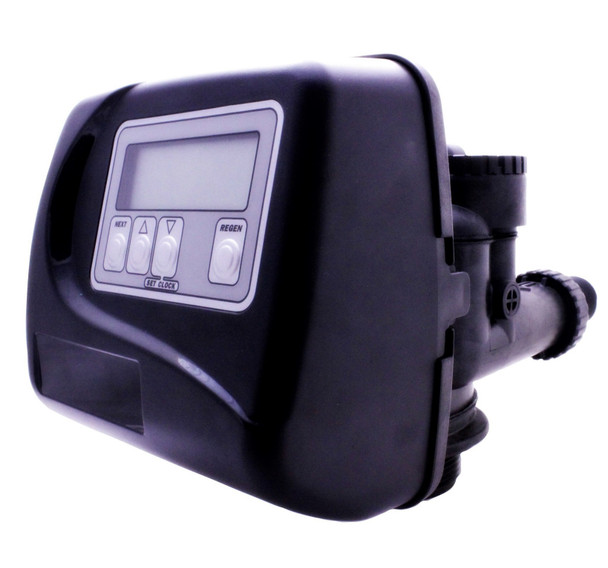

Clack WS1EA (EE) Softener Metered Control Valve (V1EADME)

Clack WS1EA (EE) Softener Metered Control Valve (V1EADME) - Image 2

Clack WS1EA (EE) Softener Metered Control Valve (V1EADME)

$587.04

SKU: V1EA

The Clack WS1EA electronic control valve is designed for water softener and filter applications, offering reliable downflow regeneration, durable construction, and flexible installation options.

Additional information

Weight	5.00 lbs
condition	New

Description

Product Documentation

Manufacturer documentation is available to support installation, operation, and servicing of the Clack WS1EA electronic control valve.

Clack WS1EA Manual
Clack WS1EA (EE) Spec Sheet
Clack Control Valves Fittings and Accessories Brochure

SPECIFICATION

Technical specifications outlining operating limits, electrical requirements, and application compatibility of the Clack WS1EA control valve.

Inlet / Outlet Fittings: 3/4″ to 1-1/2″ NPS
Cycles: Up to 6
Regeneration: Downflow
Tank Diameter: 6″–21″ for water softeners and water filters
Operating Pressure: 20–125 psi
Operating Temperature: 40–110°F
Distributor Pilot: 1.050″ OD Pipe (3/4″ NPS)
Drain Line Connection: 3/4″ or 1″ Male NPT
Brine Line Connection: 3/8″ or 1/2″ OD poly tube compression
Valve Material: Fiber reinforced composite
Supply Voltage: 100–120 VAC (50/60 Hz)
Output Voltage: 15 VDC (500 mA)

Additional information

Weight	5.00 lbs
condition	New
