Description
Product Documentation
The ExStik EC400 meter is supported by official documentation to assist with proper operation, setup, and performance verification.
- ExStik EC400 Spec Sheet
- EC400 User Manual
Features

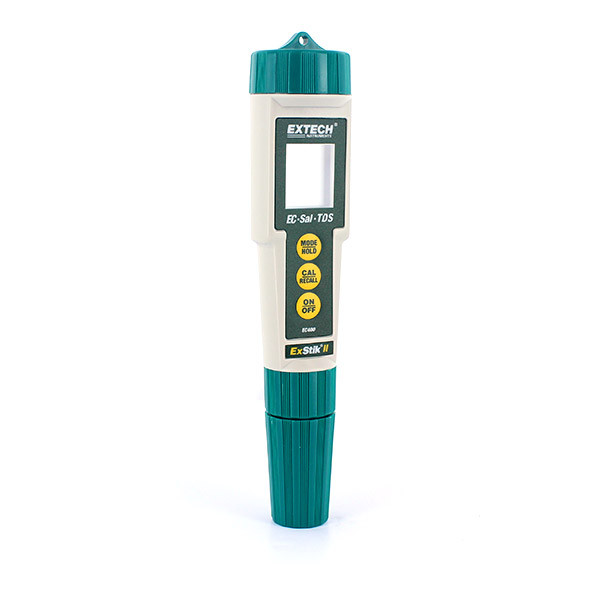

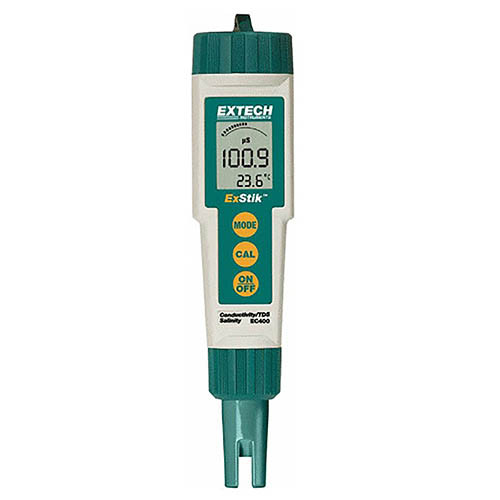

The EC400 autoranging meter is engineered for flexibility and accuracy, making it suitable for testing everything from tap water to wastewater and other aqueous solutions.
- Autoranging meter provides three measurement ranges for broad application coverage.
- Measures in multiple units including µS/cm, mS/cm, ppm, ppt, mg/L, and g/L.
- Adjustable conductivity-to-TDS conversion factor from 0.4 to 1.0 for accurate TDS calculations.
- Large 3½-digit (2000-count) digital display with analog bargraph for visual trend indication.
- Includes Data Hold, Auto Power Off, and low battery indication.
- Automatic Temperature Compensation at 2% per °C.
- Simultaneously displays conductivity, TDS, or salinity along with temperature.
- Internal memory stores up to 25 labeled readings for easy recall.
- Self-calibration of electronics occurs automatically at power-up.
- Conductivity standards are ordered separately.
- Supplied complete with meter and conductivity cell, protective cap, sample cup, four CR2032 batteries, and a 48-inch (1.2 m) neck strap.
Specification
Technical specifications outlining operating temperature range, power requirements, and physical characteristics of the EC400 meter.
- Temperature Range: 32° to 149°F (0 to 65°C)
- Temperature Resolution: 0.1°F / °C
- Temperature Accuracy: ±1.8°F / ±1°C
- Power Source: Four CR2032 button batteries
- Dimensions: 1.4 × 6.8 × 1.6 inches (36 × 173 × 41 mm)
- Weight: 3.8 oz (110 g)
