Description
PRODUCT DOCUMENTATION
The following documents provide detailed technical specifications, installation instructions, and operational guidance for the 3M ICE165-S water filtration system:
- 3M ICE165-S Spec Sheet
- 3M Water Filtration Systems for Food Services Brochure
- 3M Single Cartridge System Instruction Manual
FEATURES AND BENEFITS

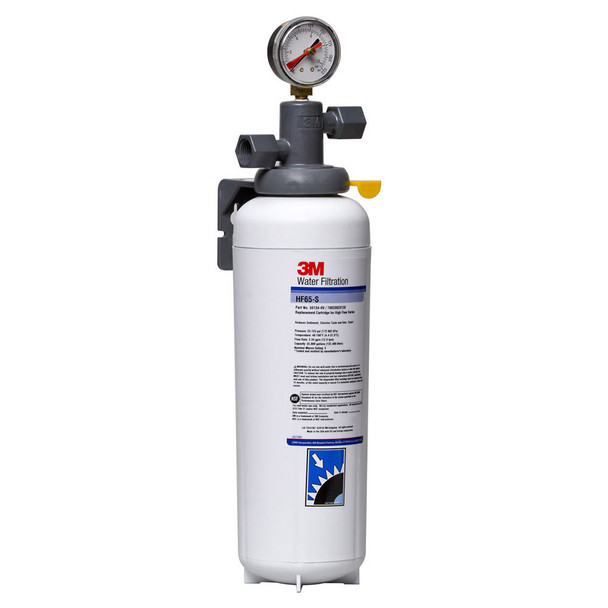

The 3M ICE165-S filtration system is engineered to deliver consistent water quality while helping extend the life of food service equipment through integrated filtration and scale protection.
- Designed for turbidity, sediment, and chlorine taste and odor reduction
- Built-in scale inhibitor to help protect equipment from clogging and scale buildup
- Includes head assembly with integral mounting bracket and pressure gauge
- Inlet water shut-off valve for added control and convenience
- Single cartridge system for simplified maintenance
- Valve-in-head design for quick and easy filter replacement
- NSF certified for reliable and safe performance
SPECIFICATION
The 3M ICE165-S system is designed with precise specifications to meet commercial food service water filtration requirements.
- Model Number: ICE165-S
- Part Number: 5616304
- Nominal Micron Rating: 3.0
- Dimensions: 4-3/8″ x 17-5/8″ (11.1 cm x 44.8 cm)
- Inlet and Outlet Ports: 3/8” FNPT horizontal
- Cartridge Type: Sanitary Quick Change (SQC) encapsulated cartridge
- Capacity: 35,000 gallons (132,489 liters)
- Service Flow Rate: 3.34 gpm (12.6 lpm)
- Replacement Filter Cartridge Model Number: HF65-S
- Replacement Filter Cartridge Part Number: 5613309
- Case Quantity: 1 piece
