Culligan Compatible Membranes

Culligan Compatible Membranes

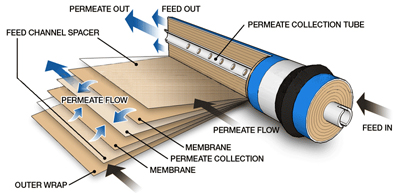

 Fuction of Membranes in Water Purification

Semi permeable membrane  to remove larger particles from drinking water. In this process, an applied pressure is used to overcome osmotic pressure. That is driven by chemical potential, a thermodynamic parameter. Membrane can remove many types of molecules and ions from solutions, including bacteria, and is used production of potable, lab grade & industrial water. The result is that the solute is retained on the pressurized side of the membrane and the pure solvent is allowed to pass to the other side. Membrane should not allow large molecules or ions through the pores, but should allow smaller components of the solution to pass freely.

 In the normal process, the solvent naturally moves from an area of low solute concentration through a membrane, to an area of high solute concentration. The movement of a pure solvent is driven to reduce the free energy of the system by equalizing solute concentrations on each side of a membrane, generating osmotic pressure.

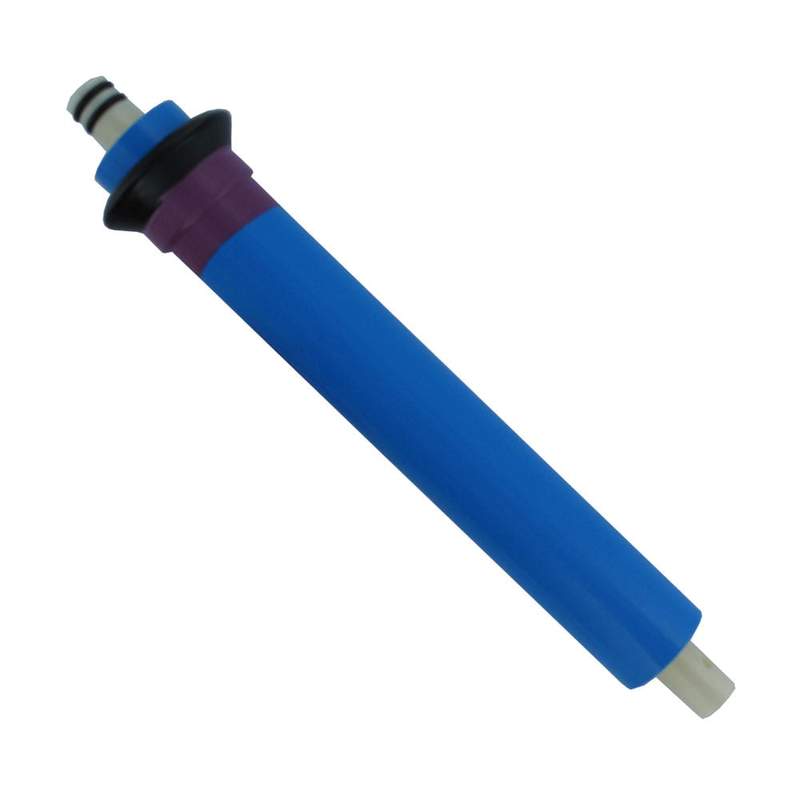

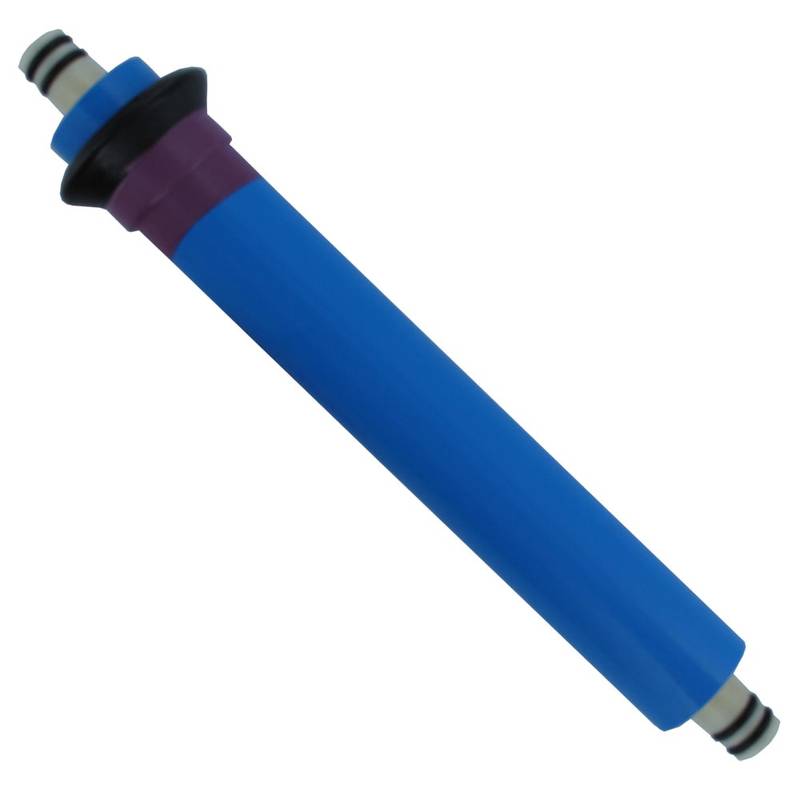

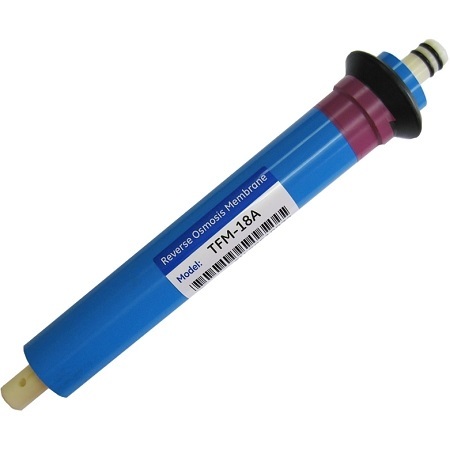

Culligan TFM-18-C15-18 GPD          Culligan TFM-36-A 36 GPD            Culligan TFM-18-A  15-18 GPD

                  Culligan® Compatible TFM-36A Membrane, 36 gpd

Culligan TFM-18-C15-18 GPD           Culligan TFM-36-A 36 GPD           Culligan TFM-18-A15-18 GPD

Old stlye membrane (two O rings      Part No 1224436, 01-0074-02               Alt. Part Number: ACT-18,

on each side) compatible with           Fits standard membrane housings         AG1812TAR, AG1512TAR,

H5,H8,H53,H82C & H83                    H8, H83, AC15, and AC30 models.         1224435 (Dbl O-ring one end)

systems. compatible with                 Culligan 01-0074-02, 01-0001-45,          Culligan TFM-18-A, AG1512TAR

00-4493-72, TFM-18-C                     AG1812TJF, AG1812TJR,                       Culligan Water Stystem

membrane part numbers                 TFM-36-A and AG1512TARW                  TFM-18-A, AG1512TAR 00-4493-72


  Culligan TFM-35 GDP                     Culligan TFM-50A 50 GPD                   Culligan CTA-16C 10-16 GPD

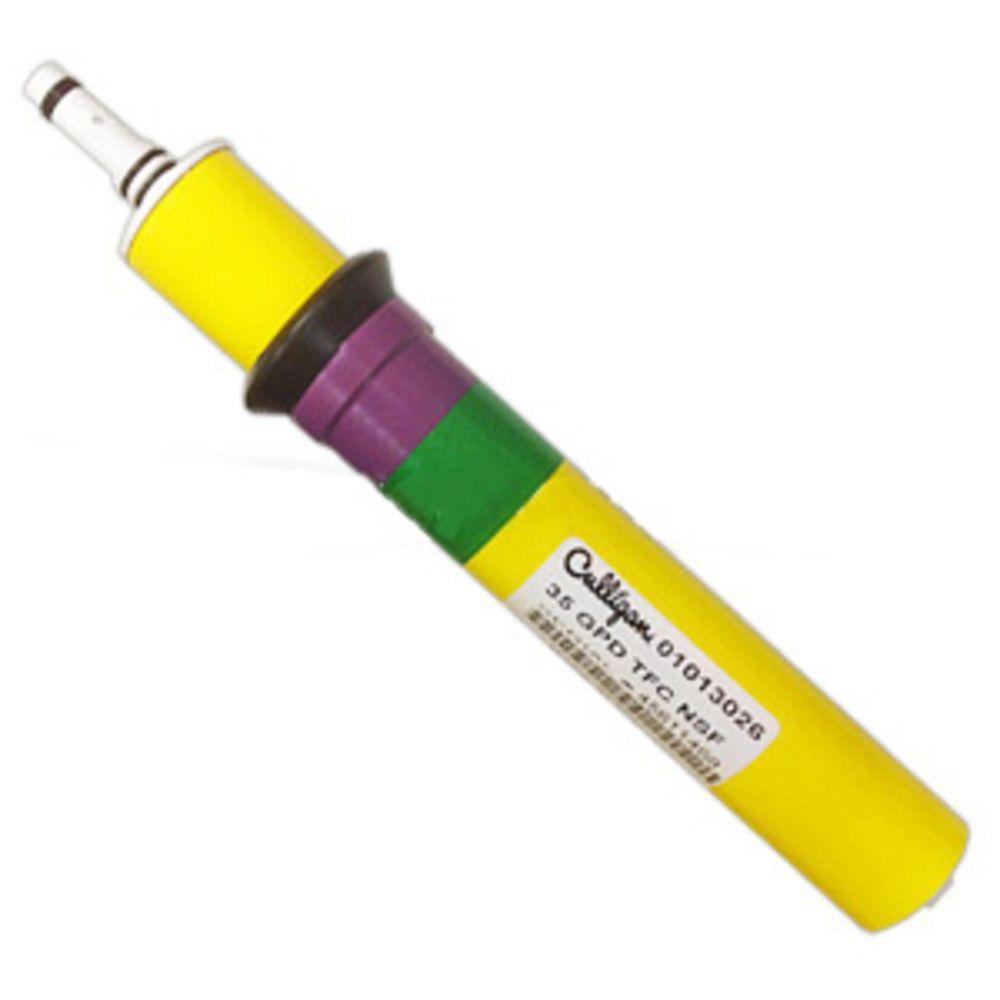

01013026 Culligan Water Filters

  Part Number: 01013026                 Part Number:1224437                         Part Number: 1224433

Water Tower membrane Purple       Culligan compatible TFC membrane      Culligan compatible CTA membrane

 band Genuine Culligan water         TFM-50A 50 GPD fits standard models    model number H5 & H53

tower replacement membrane         housings H8, H83, AC15 and AC30        Alt. Part Number: CTA-16C,

Culligan Water Tower and               compatible LC50, A/C30/15, H83/         00-4428-45,01-0001-45,

CWT-35 systems provides               H53, 1224437 also as  01-0060-98        M-C1812C10,  1224433 &

35 GOD, Compatible 41402004        01-0060-98, TFM-50A, AG2012TJF         01-0082-56,

                                                     AF2012TJR ,00-4015-33
